A Scan

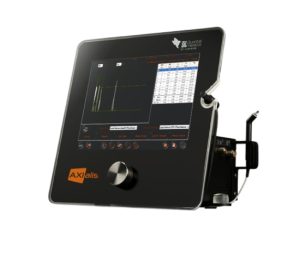

Axialis
AXIalis™ is the next-generation integrated and compact biometer and pachymeter (optional). Ultrasound biometry is complementary to optical biometry when a cataract is highly dense or in case of vitreous hemorrhage. AXIalis™ has a high precision in biometry, IOL calculation with a total of 12 formulas (including post refractive surgery formulas) and pachymetry (optional) with integrated tables of correlations between IOP and corneal thickness.
| Model | Axialis |
|---|---|
| Category | Anterior and Posterior |
| Probe Frequency | 11 MHz |
| Detect Depth | 60 mm (2.4’’) for 1,536 points |
| Gain/Total Gain Control (TGC) | 0 to 30 dB |
| Biometry Accuracy | 0.03 mm (0.0012’’) |
| Adjustable Gain | 20 to 110 dB |
| Time Gain Control (TGC) | 0 to 30 dB |
| IOL Formulas | SRK-T, SRK-II, HOLLADAY, BINKHORST-II, HOFFER-Q, HAIGIS |
| Post-op refractive calculation | Pre-op and post-op refraction, pre-op and post-op keratometry |
| Keratometry correction and implant calculation | 6 different methods: history derived, refraction derived, contact lens method, Rosa regression, Shammas regression, Double K/SRK-T (Dr Aramberri formula) |
| IOL values bracketed | 9 values bracketed for desired ametropia for each IOL (IOL increment steps: 0.25 D or 0.50 D) |
| Simultaneous display | Simultaneous display of 4 different IOL calculations |
| Biometry Measurement | Phakic, aphakic, PMMA, acrylic and silicone for pseudophakic eyes |
| Modes | Biometry & Pachymetry |
| Display | Touch screen 8.0" (16.2 cm x 12.1 cm) (6.4‘’x 4.8‘’) |
| Principal | Quantel Medical |
