B Scan
Compact Touch

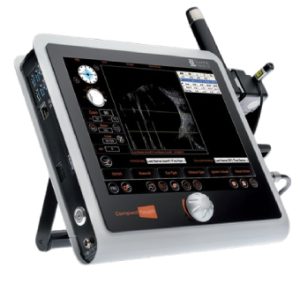

Compact Touch: 3 in 1 Ultrasound System A/B Scan & Pachymetry.Compact Touch, the portable scan system from Quantel Medical, is adapted to today’s clinical needs and tomorrow’s medical challenges of general ophthalmologists. Improvements in the new generation of Compact Touch include a 15 MHz B probe to increase the quality of the B-scan imaging (resolution increased by 30%), which the platform performs along with A-scan and pachymetry modes. Interactivity is enhanced with DICOM compatibility, WiFi and Bluetooth connectivity and HDMI video output. The sleek, modern design now utilizes a new generation touch screen interface, and the device is fanless and silent as a tablet. User-friendly design and software enhancements improve workflow. The Compact Touch has now received CE Mark.
| Model | Compact Touch |
|---|---|
| Category | B Scan |
| Image Storage/Output | Built-in physician and patient database |
| Exportation | Exportation of still images and video sequences |
| Reports | Customizable digital and printed reports |
| DICOM Compatibility | DICOM compatible (Worklist, Storage, Print) |
| EMR Compatibility | EMR compatible |
| Printer Compatibility | Compatible with PC and USB video printer |
| Biometry Measurement | Phakic, aphakic, PMMA, Acrylic and silicone for pseudophakic eyes |
| Interface | Back-lit LCD colour touch screen monitor (resolution 1024×768) |
| IOL Formulas | SRK-T, SRK II, HOLLADAY, BINKHORST-II, HOFFER-Q, HAIGIS |
| Focus | B Mode – 15 MHz probe: 24 mm (0.94") |
| Measurement Range | Posterior Pole Examination, Biometry, Corneal Thickness, Dynamic Range |
| Probes | B Mode – 10 MHz probe, Biometry – 11 MHz Probe, Pachymetry |
| Scan Angle | B Mode – 15 MHz Probe: 50°, Pachymetry: 45° |
| Detect Depth | B Mode – 15 MHz probe: 60 mm (2.36"), Biometry – 11 MHz Probe: 60 mm (2.4") on 1536 points |
| Biometry Accuracy | 0.03 mm (0.002") |
| Transducer Frequency | B scan probe: 15 MHz, A scan probe: 11 MHz, Pachymetry probe: 20 MHz |
| Principal | Quantel Medical |
